DS Series Momentary

DS Series Momentary
DS Series Momentary DS Series Momentary DS Series Momentary DS Series Momentary

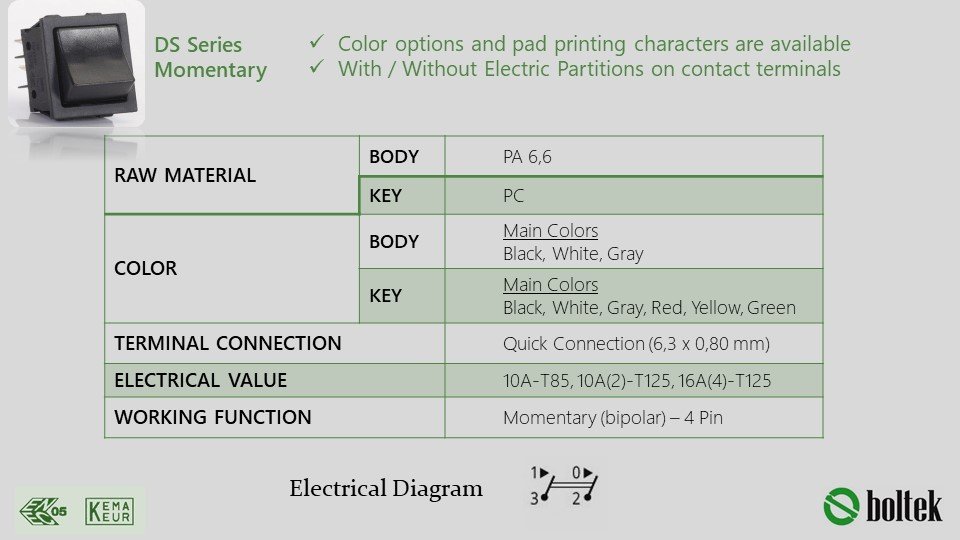

Momentary Working Function

Body is PA 6,6

Available Electrical Values and Temperature Features are:

  • 10A T85°C/55°C
  • 10A(2) T125°C/55°C
  • 16A(4) T125°C/55°C

Rated Voltage 250VAC

Terminal Con.; 6,3 x 0,8 mm

Double Pole

With or Without Plastic Partitions

Degree of Protection IP40

4 Pins

Category to Heat and Fire is 850°C

Rated impulse withstand voltage is 2500V
