DS Series with Cap

DS Series with Cap
DS Series with Cap DS Series with Cap DS Series with Cap DS Series with Cap

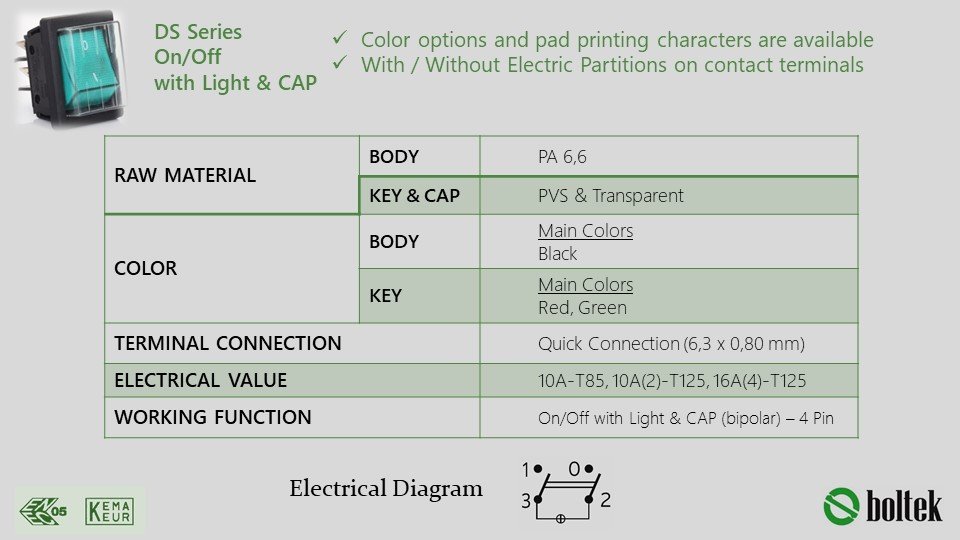

On/Off with Light Working Function

Body is PA 6,6

Available Electrical Values and Temperature Features are:

  • 10A T85°C/55°C
  • 10A(2) T125°C/55°C
  • 16A(4) T125°C/55°C

Rated Voltage 250VAC

Terminal Con.; 6,3 x 0,8 mm

Double Pole

With or Without Plastic Partitions

Degree of Protection IP40

4 Pins

Category to Heat and Fire is 850°C

Rated impulse withstand voltage is 2500V
